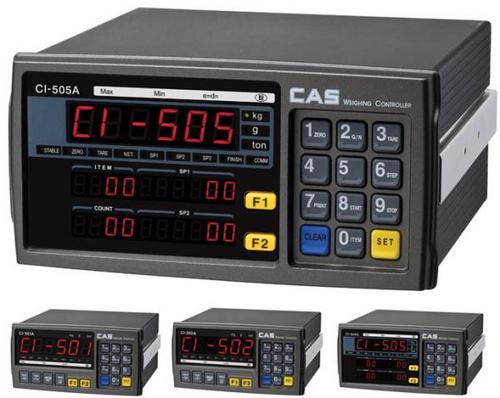

CI-500A Series    - High-legible LED display & sub display - High speed A/D conversion & display resolution - Terminal block installed & various interface ports  |
  |   |   |   |  | Model | CI-501A | CI-502A | CI-505A | CI-507A |  | LoadcellExcitation | DC 10V |  | LoadcellConnection(350 Ω) | 8 ea(4 & 6 wired ) |  | ZeroAdjustmentRange | -0.6mV ~ +42.0mV |  | InputSensitivity | 0.45uV /D |  | InternalResolution | 1/520,000 |  | ExternalResolution | 1/10,000 |  | A/DConversionRage | 200 times/sec |  | Display | Unit Display | kg, g, ton |  Weight Display | 6-digit LED(Letter height: 25mm) |  Auxiliary Display | - | 4ea | 5ea |  | Power | AC 100~250V, 50/60Hz |  | Operating Temp. | -10 ℃ ~ 40 ℃ |  | ExternalRelayInput | 4ea |  | ExternalRelayOutput | - | 6ea |  | Product Size(mm) | 195(W) x 189(D) x 98(H) |  | ProductWeight(kg) | Approx. 1.8 |
  |
  |
  |
  |  |
